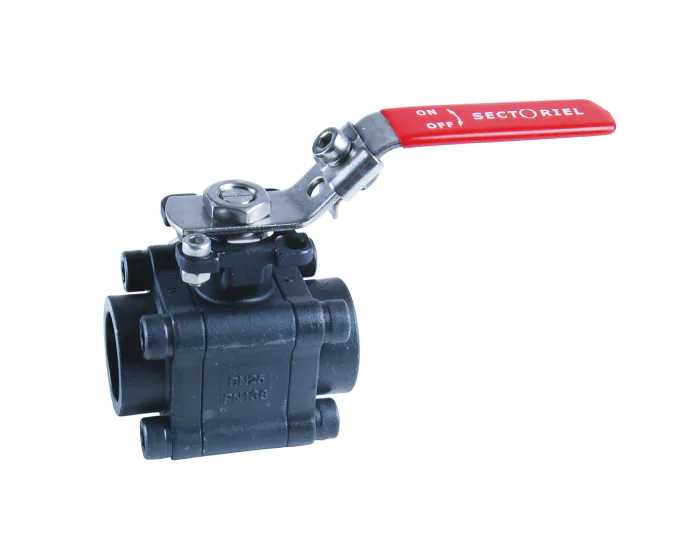

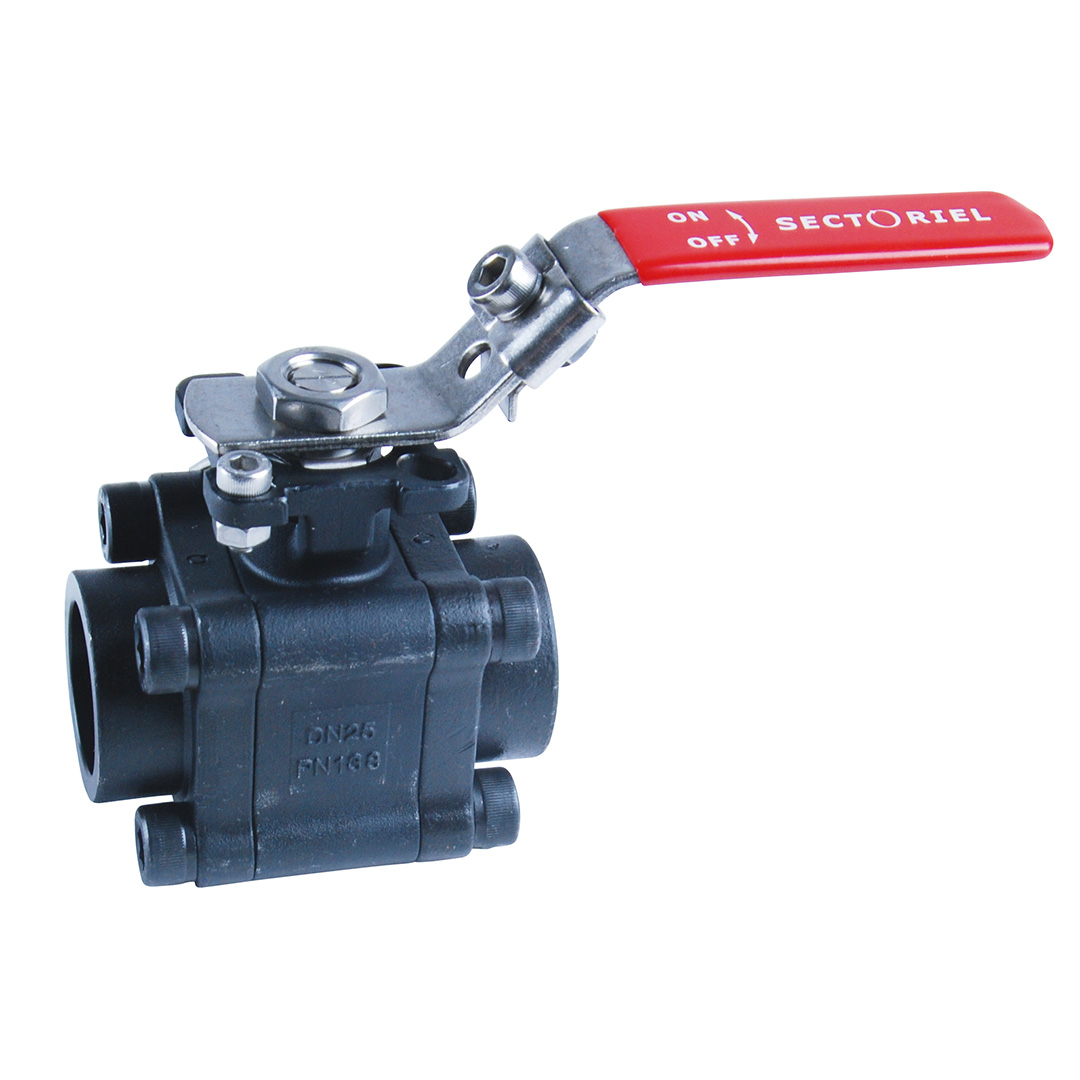

The 702XS series carbon steel ball valve is designed with PEEK seats and graphite stem tightness. It resists high temperatures (-10°C to +250°C) and handles steam service up to 25 bar at +226°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| PS (bar) | 137 |
| Connections | Welding SW |
| TS max (°C) | 250 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel A216 WCB (1.0619) DN15 - 1/2'' | 271362 | S1008678 |
€154.26
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) DN20 - 3/4'' | 271363 | S1008679 |
€156.26
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) DN25 - 1'' | 271364 | S1008680 |
€286.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 | 271365 | S1008681 |
€304.59
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 | 271366 | S1008682 |
€395.69
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) DN50 - 2'' | 271367 | S1008683 |
€891.07
(excl. btw)
|
add to cart |
